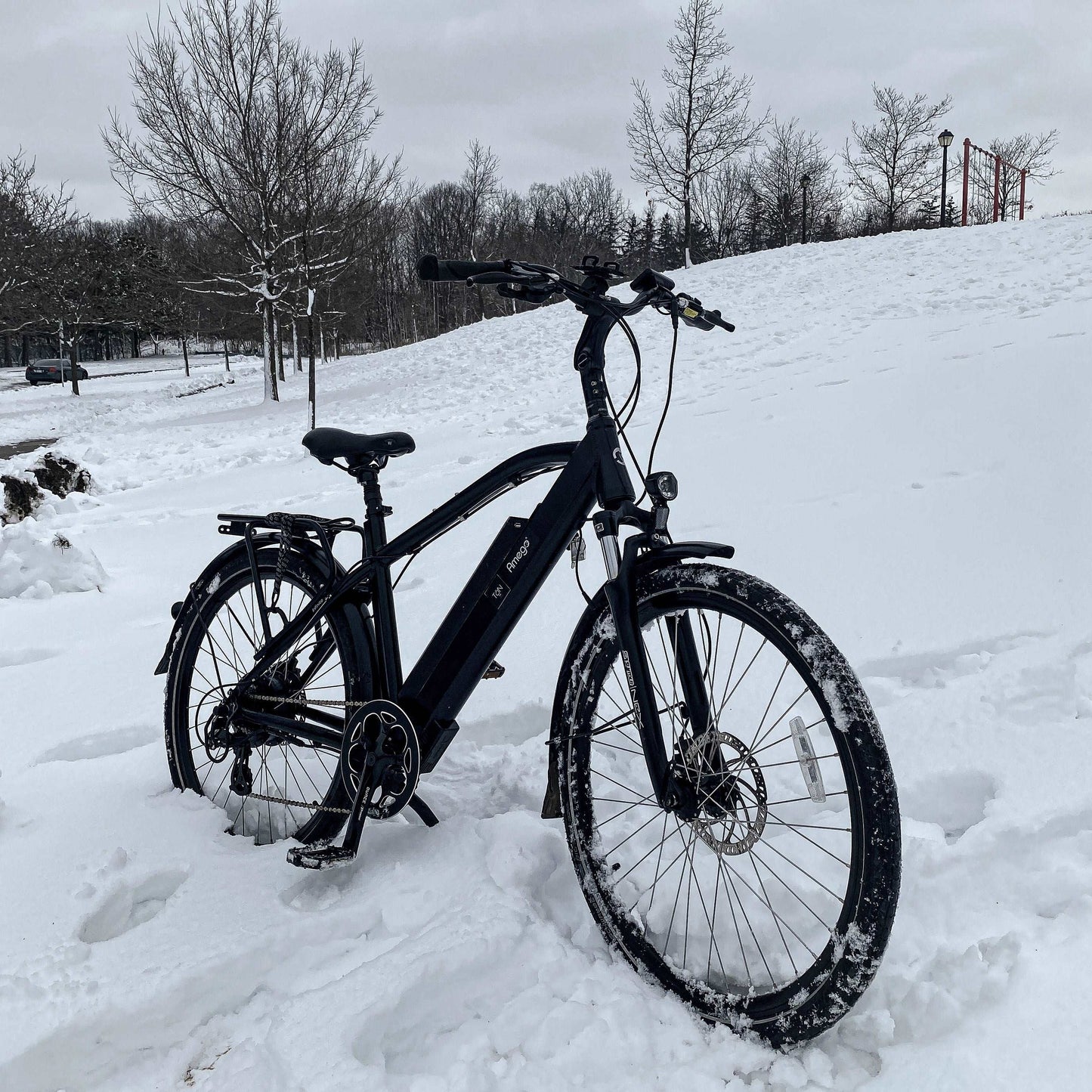

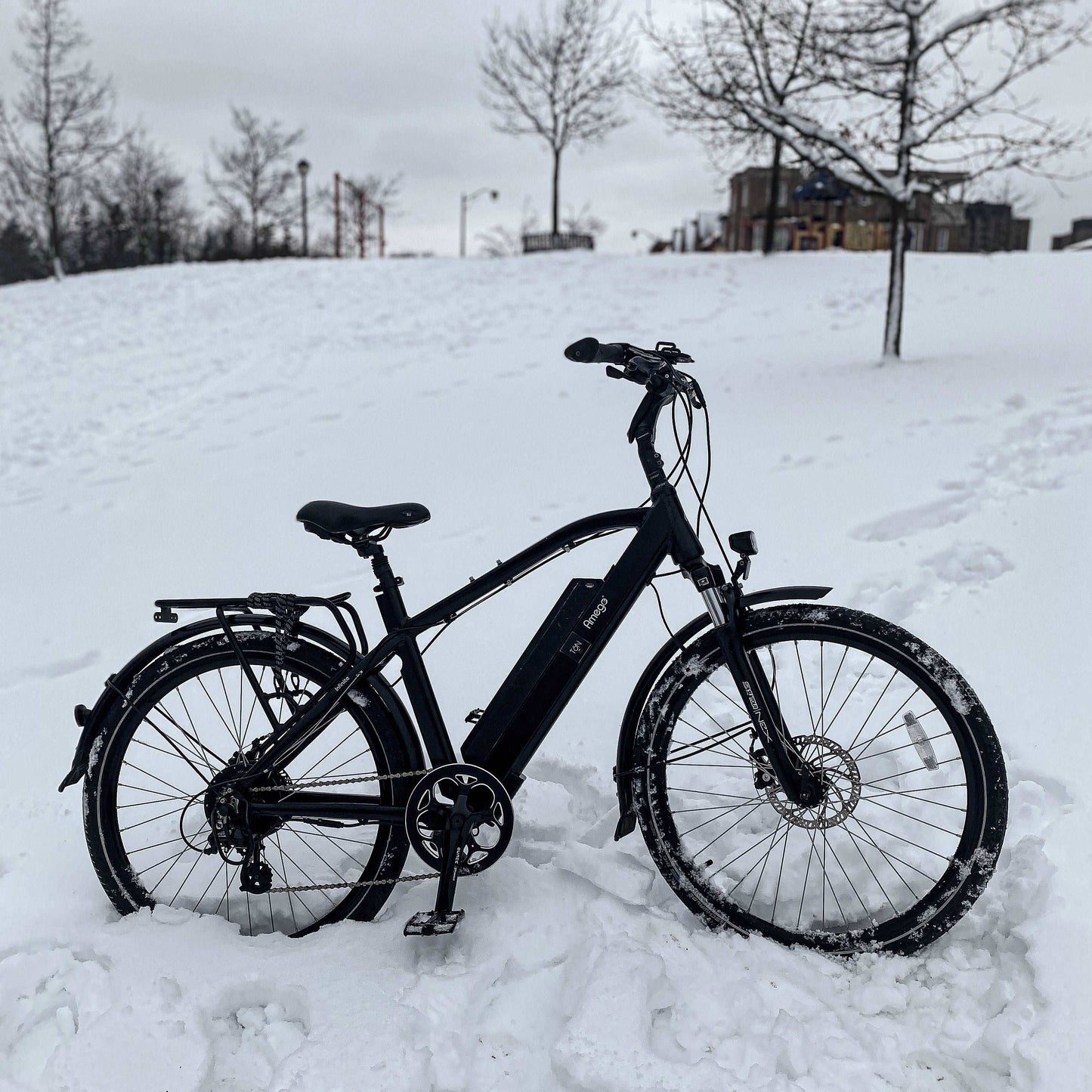

Amego Infinite

A feature rich, city style electric bike, available in black color with taller high-step

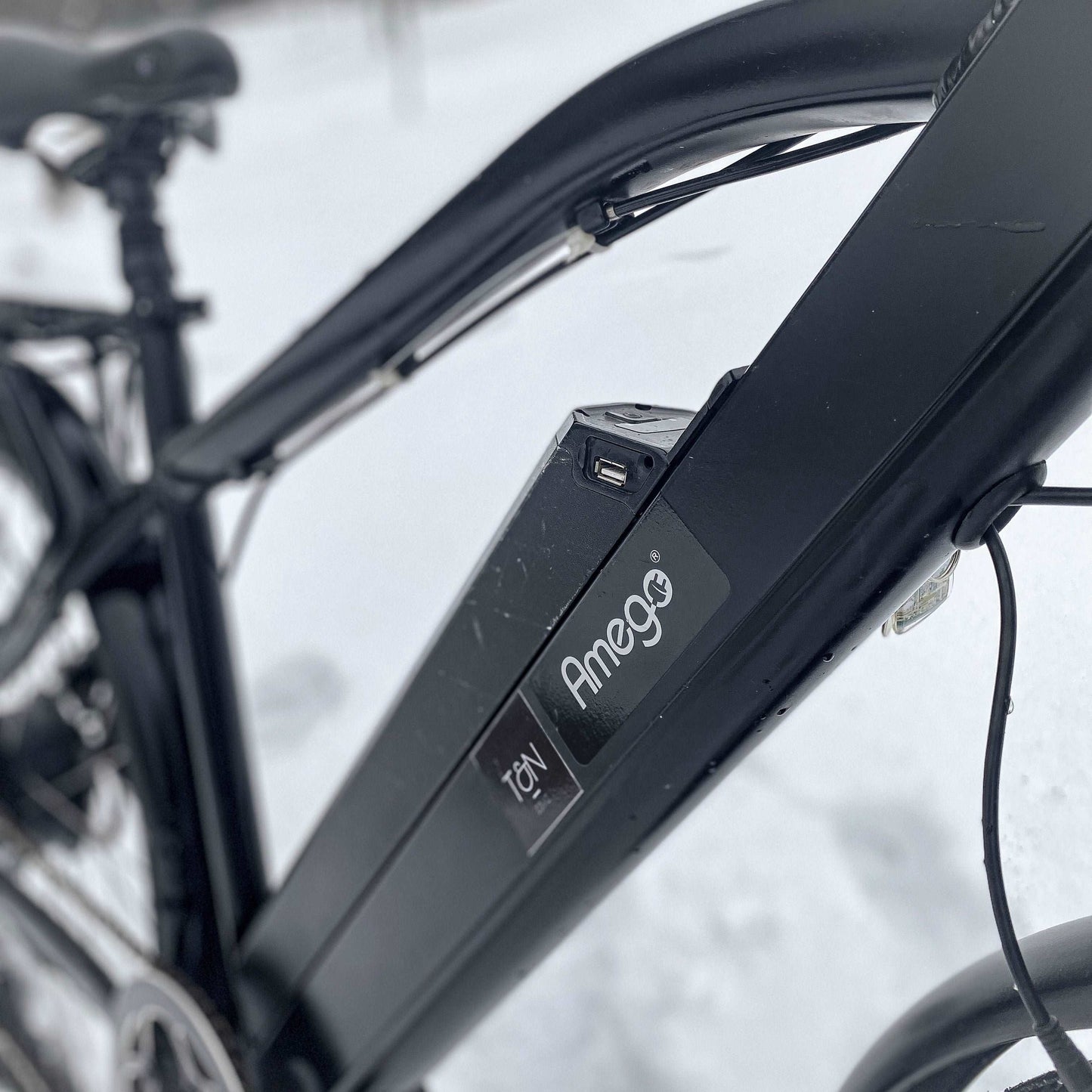

Impressive 48v 16ah hour Lithium-ion battery with USB charging port on the side to maintain accessories (smartphones, additional lights, etc.)

Powerful but easy-to-pull disc brakes with large 180mm and 160mm rotors, excellent Schwalbe tires with reflective sides and puncture protection, comfortable suspension fork and seat post

Specifications:

• TOTAL WEIGHT:

58.4 lbs (26.48 kg)

• BATTERY WEIGHT:

9.2 lbs (4.17 kg)

• MOTOR WEIGHT:

10 lbs (4.53 kg)

• FRAME MATERIAL:

6061 Aluminum Alloy

• FRAME SIZES:

19 in (48.26 cm)

• GEOMETRY MEASUREMENTS:

19" Seat Tube, 22.5" Reach, 29" Stand Over Height, 36" Minimum Saddle Height, 26" Width, 71.5" Length

• FRAME TYPES:

High-Step

• FRAME COLORS:

Black

• FRAME FORK DETAILS:

SR Suntour NEX Spring Suspension, 63mm Travel, Preload Adjust Under Caps, 28mm Stanchion Diameter, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

• FRAME REAR DETAILS:

135mm Hub Spacing, 12mm Keyed Threaded Axle with 20mm Nuts

• ATTACHMENT POINTS:

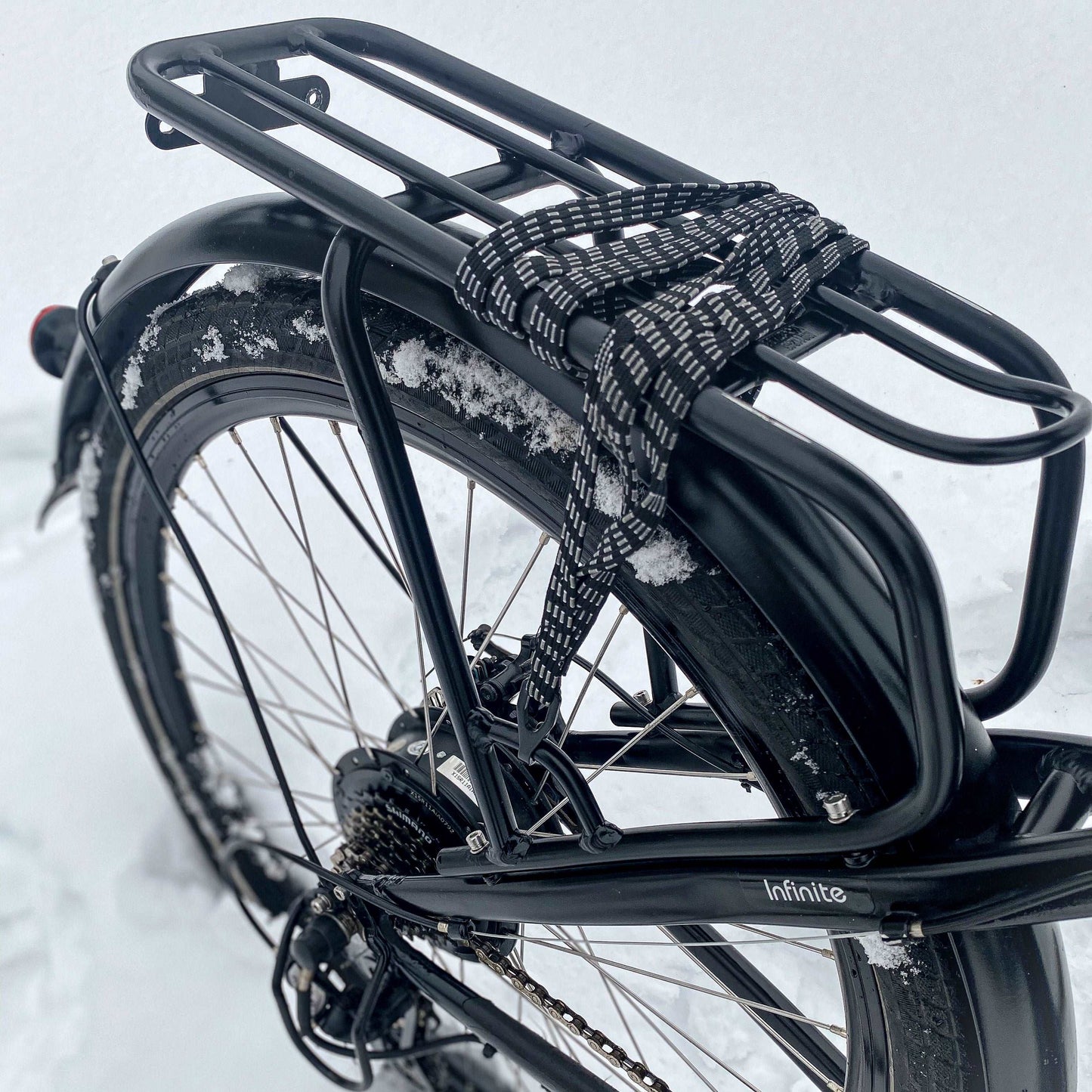

Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses

• GEARING DETAILS:

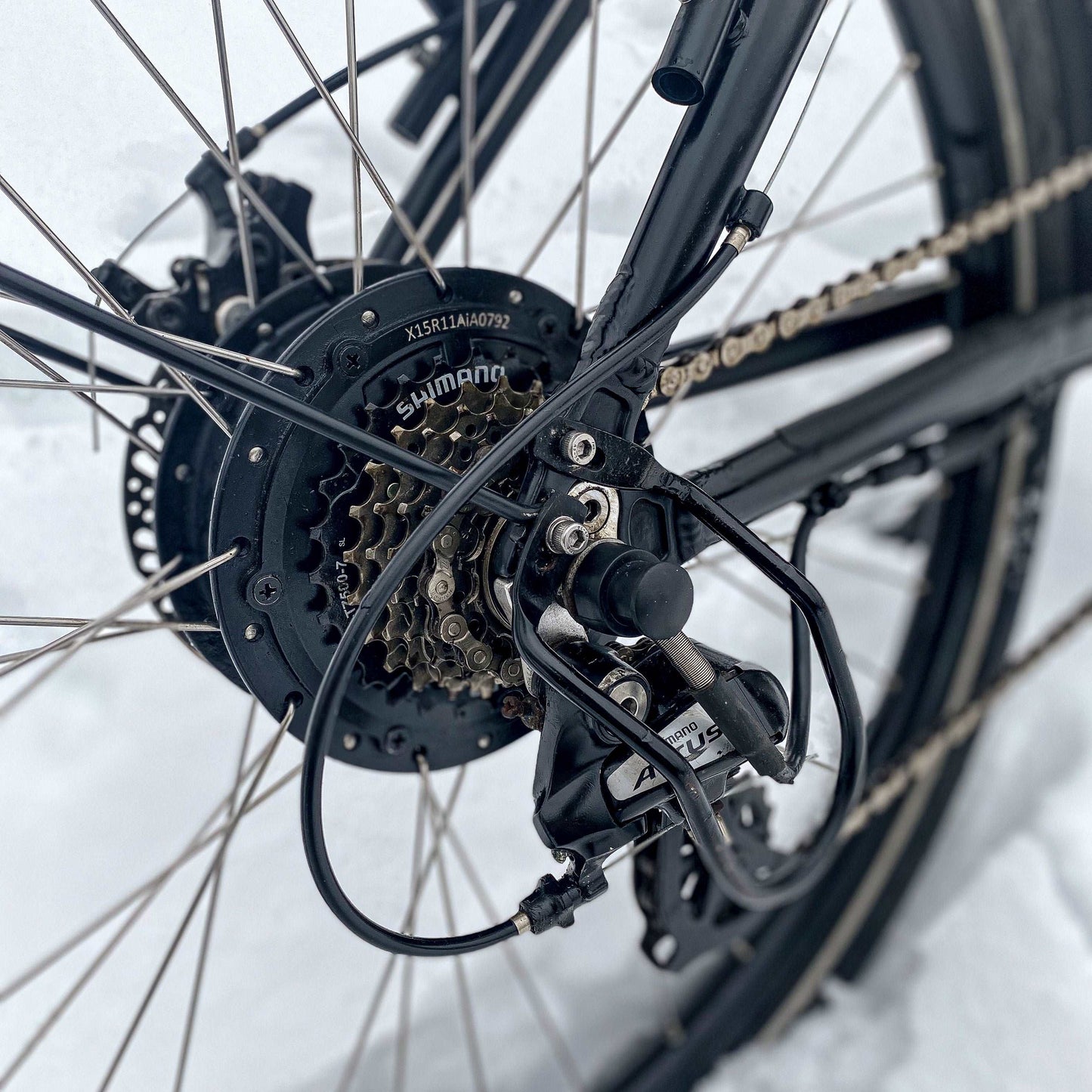

8 Speed 1x8 Shimano Acera Derailleur, Shimano Cassette 11-32 Tooth

• SHIFTER DETAILS:

Shimano Triggers on Right (One-Way High Lever, Three-Shift Low Lever)

• CRANKS:

Prowheel Ounce, Forged Alloy, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard

• PEDALS:

Wellgo Aluminum Alloy Platform with Fixed Pins, Black

• HEADSET:

Neco, Integrated, Threadless Internal Cups, Tapered 1-1/8" to 1-1/2"

• STEM:

Promax Tool-Free Adjustable Angle, 100mm Length, 75mm Base Height, 25.4mm Clamp Diameter, One 15mm Spacer, Two 10mm Spacers, One 5mm Spacer

• HANDLEBAR:

Mid-Rise, Aluminum Alloy, 650mm Length

• BRAKE DETAILS:

Tektro Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Levers with Motor Inhibitors and Adjustable Reach

• GRIPS:

Velo, Ergonomic Rubber, Locking

• SADDLE:

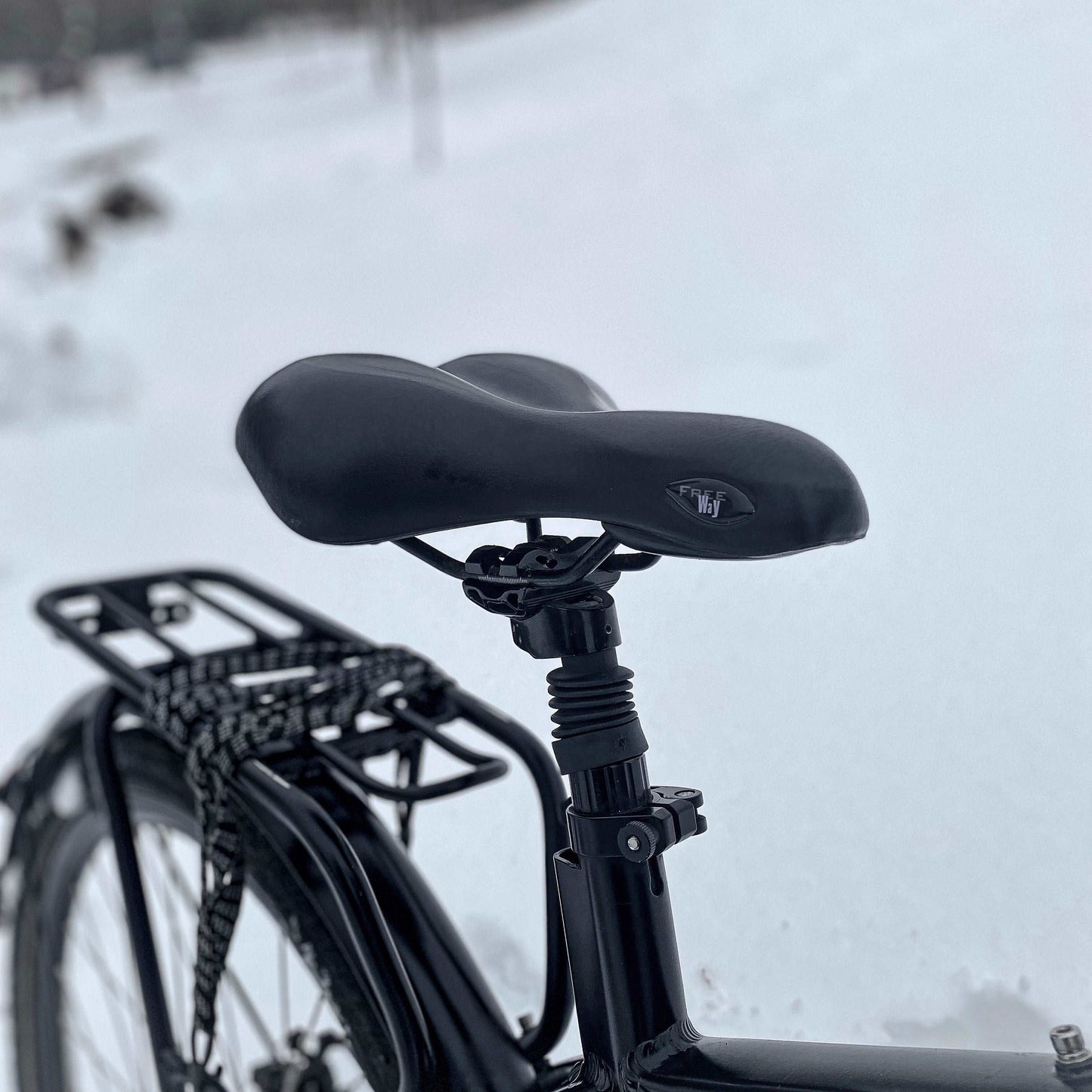

Selle Royal Royalgel, Free Way

• SEAT POST:

Promax Suspension (40mm Travel), Aluminum Alloy, Forged Head

• SEAT POST LENGTH:

300 mm

• SEAT POST DIAMETER:

27.2 mm

• RIMS:

Aluminum Alloy, Double Walled, 25mm Outer Width, 36 Hole, Black

• SPOKES:

Stainless Steel, 13 Gauge, Silver with Nipples

• TIRE BRAND:

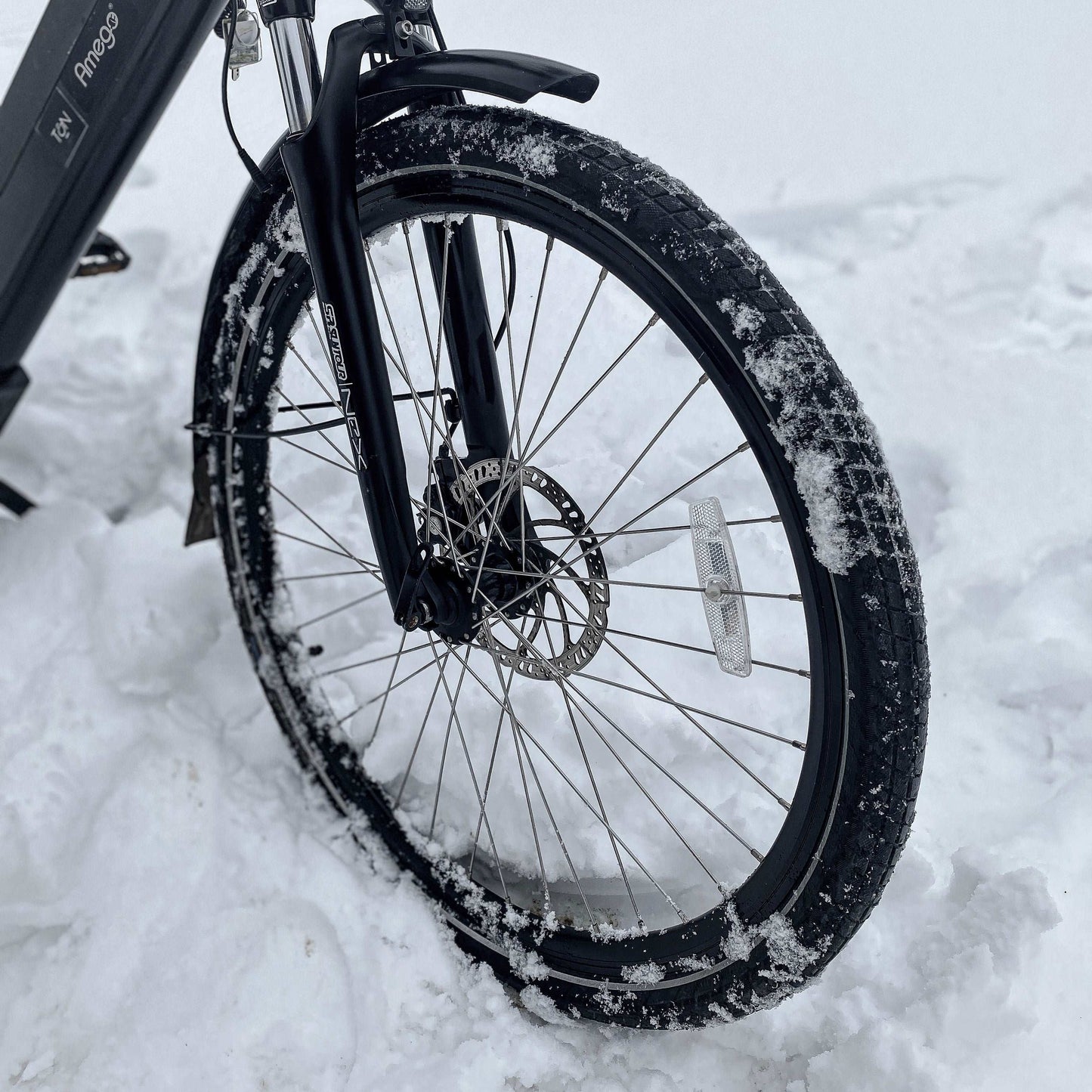

Schwalbe Big Ben, 27.5" x 2.0" (50-584)

• WHEEL SIZES:

27.5 in (69.85cm)

• TIRE DETAILS:

35 to 70 PSI, 2.5 to 5.0 BAR, Reflective Sidewall Stripes, Performance LineRaceGuard, LiteSkin

• TUBE DETAILS:

Schrader Valve

• OTHER:

Locking Removable Semi-Integrated Downtube Battery Pack (Reention Cylinder and Key), 9 Mosfet 18 Amp Current Controller, 1.5lb 2 Amp Charger, Sine Wave Controller, Basic Assembly Toolkit, 275.5lb Max Load
