By TN Ebike

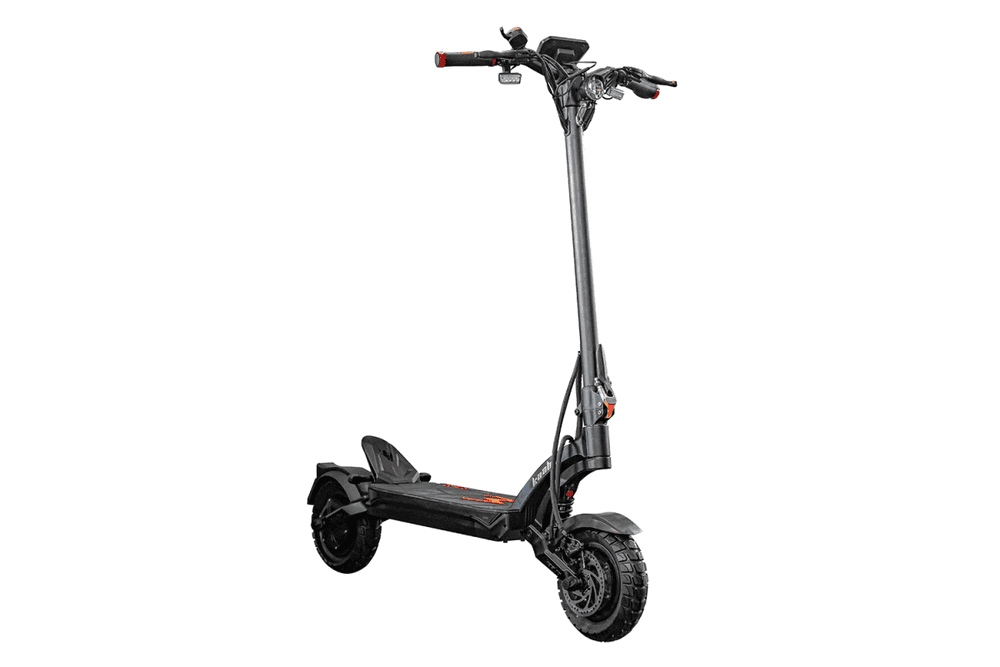

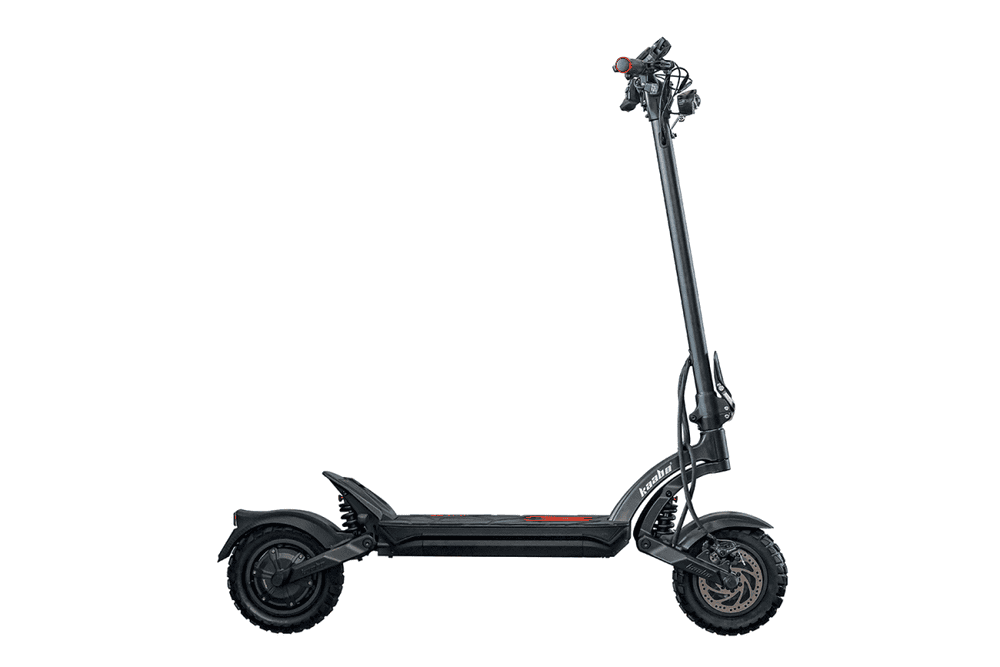

Kaabo Mantis Pro

Kaabo Mantis Pro

Regular price $2,399.00 CAD
Regular price $3,000.00 CAD Sale price $2,399.00 CAD
Sale Sold out

The Mantis Pro was built for the advanced rider who wants strong acceleration as well as excellent trail performance.

Capable of top speeds of 60 KPH driven by dual front and rear 1,000 watt motors, this scooter can easily handle inclines of 35 degrees.

The 60 volt LG 24.5 ah battery allows this scooter to reach a range of 80 kilometers on single motor eco mode

Specifications

1000W x2

Dual Motors

90 Km

Max. Range

60V 24.5Ah

Battery Capacity

60 Km/h

Max Speed

30 Degress

SPECIFICATIONS

Version Name Mantis 10 Lite (UL) Mantis 10 ECO 800 Mantis 10 PLUS Mantis 10 PRO+
Configuration 48V 13Ah 48V 18.2Ah 60V 18.2Ah 60V 24.5Ah
Color
Battery Type Li-lon battery pack 18650
Battery Model DMEGC26E LG MJ1/samsung 35E
Moter Power Brushless motors 500W *2 ( separable version)W Brushless motor 800W Brushless motor 1000W*2 Brushless motor 1000W*2
Max.Speed 25km/h (50km/h) 50km/h 60km/h 60km/h
Max.Range AAround 45KM (75kgs load,25km/h flat road continous riding basis) Around 70KM(75kgs load, 25km/h flat road continous riding basis) Around 75KM(75kgs load, 25km/h flat road continous riding basis) Around 90KM(75kgs load, 25km/h flat road continous riding basis)
Climbing Angles 25° 30° 30°
Max.Load 120kg
Charger 54.6V 2A GX16-3 1+3- 67.2V2A GX16-3 1+3-
Charging Time Around 6.5 hrs Around 9 hrs Around 9 hrs Around 12.3 hrs
Shock Absorber Front and Rear C type spring shock absorber
Brake Disc brake +EABS (140mm) Semi hydraulic brake+EABS (140mm) (Optional front and rear hydraulic) Full hydraulic brak+ABS
Light System LED front light+LED deck light+Turn Light+Headlight with horn
Controller Kaabo Sina Wave controller Kaabo Sine Wave (dual- motor version Optional Minimotors controller) Minimotors controller
Unfolding Size 1267*560*1230mm
N.W. 28KGS 25.3KGS 31KGS 31KGS
Tyres 10*2.25 inch 10* 2.5 inch ( Optional10*3.0 Street tyres/Off road tyres )
Display Kaabo display LT-01 display Minimotors EY3
Product Material Handle, frame, bar material 6061- t6 aluminum alloy and 6082- t6 aluminum forging; Cover PP; Shaft scm440;
