Kaabo Mantis 10 Plus
Kaabo Mantis 10 Plus
Regular price
$1,999.00 CAD
Regular price
Sale price
$1,999.00 CAD
Unit price
/
per
Range
approx 75km (eco-mode)
Top Speed60km/hr
Motor1000w Dual Brushless
Battery60v 18.2Ah Li-ion battery pack 18650
Charge Time8-9 hours

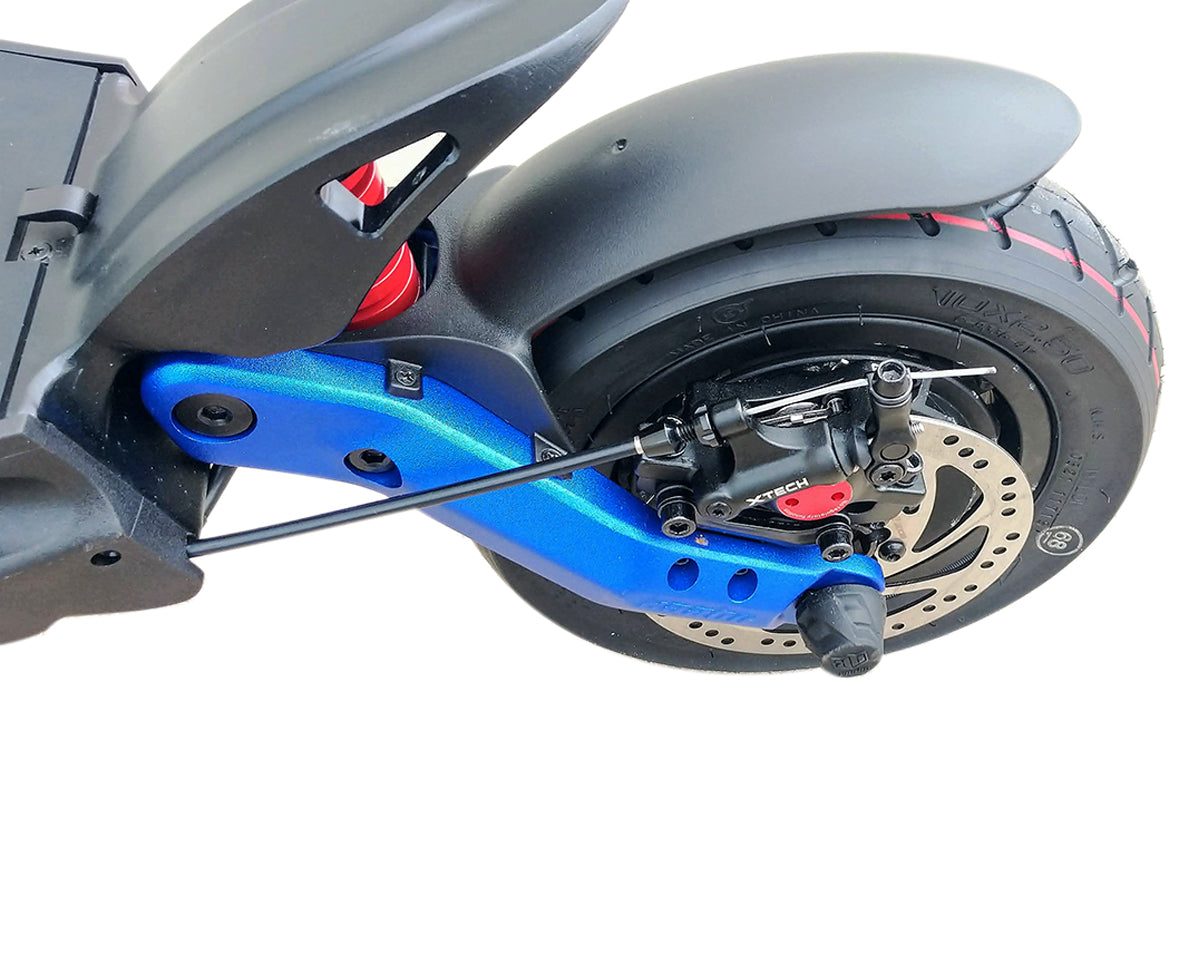

BrakesSemi hydraulic brake + EABS(140mm)
SuspensionFront and rear C type spring shock absorber
Cargo Capacity120kg
Climbing Angle30% Slope
Net Weight30kgs
Tires10 x 2.5″
ColourBlack Blue, Black Silver
SPECIFICATIONS
Version Name | Mantis 10 Lite (UL) | Mantis 10 ECO 800 | Mantis 10 PLUS | Mantis 10 PRO+ |
---|---|---|---|---|
Configuration | 48V 13Ah | 48V 18.2Ah | 60V 18.2Ah | 60V 24.5Ah |
Color | ||||
Battery Type | Li-lon battery pack 18650 | |||
Battery Model | DMEGC26E | LG MJ1/samsung 35E | ||
Moter Power | Brushless motors 500W *2 ( separable version)W | Brushless motor 800W | Brushless motor 1000W*2 | Brushless motor 1000W*2 |
Max.Speed | 25km/h (50km/h) | 50km/h | 60km/h | 60km/h |
Max.Range | AAround 45KM (75kgs load,25km/h flat road continous riding basis) | Around 70KM(75kgs load, 25km/h flat road continous riding basis) | Around 75KM(75kgs load, 25km/h flat road continous riding basis) | Around 90KM(75kgs load, 25km/h flat road continous riding basis) |
Climbing Angles | 25° | 30° | 30° | |
Max.Load | 120kg | |||
Charger | 54.6V 2A GX16-3 1+3- | 67.2V2A GX16-3 1+3- | ||
Charging Time | Around 6.5 hrs | Around 9 hrs | Around 9 hrs | Around 12.3 hrs |
Shock Absorber | Front and Rear C type spring shock absorber | |||
Brake | Disc brake +EABS (140mm) | Semi hydraulic brake+EABS (140mm) (Optional front and rear hydraulic) | Full hydraulic brak+ABS | |
Light System | LED front light+LED deck light+Turn Light+Headlight with horn | |||
Controller | Kaabo Sina Wave controller | Kaabo Sine Wave (dual- motor version Optional Minimotors controller) | Minimotors controller | |
Unfolding Size | 1267*560*1230mm | |||
N.W. | 28KGS | 25.3KGS | 31KGS | 31KGS |
Tyres | 10*2.25 inch | 10* 2.5 inch ( Optional10*3.0 Street tyres/Off road tyres ) | ||
Display | Kaabo display | LT-01 display | Minimotors EY3 | |
Product Material | Handle, frame, bar material 6061- t6 aluminum alloy and 6082- t6 aluminum forging; Cover PP; Shaft scm440; |
