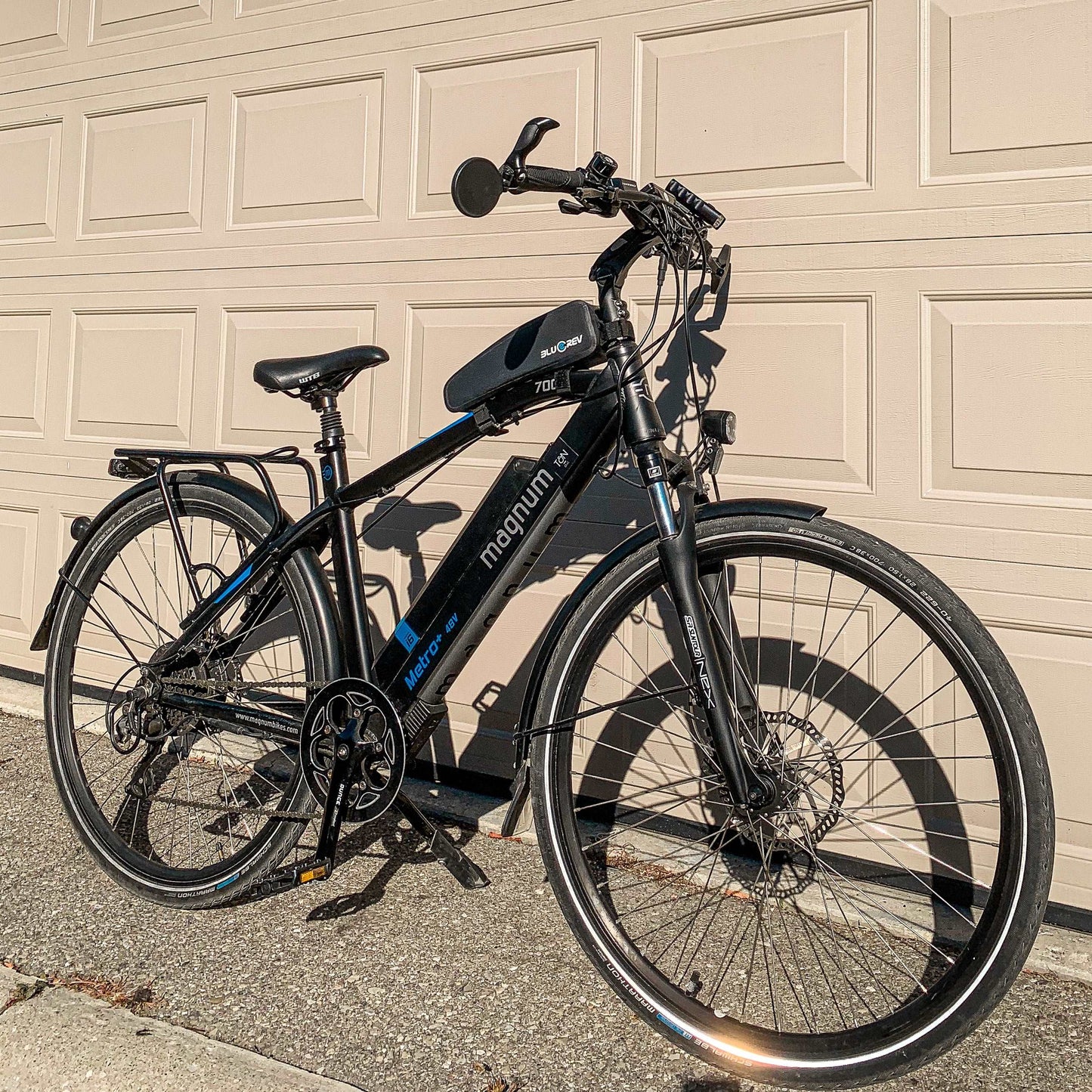

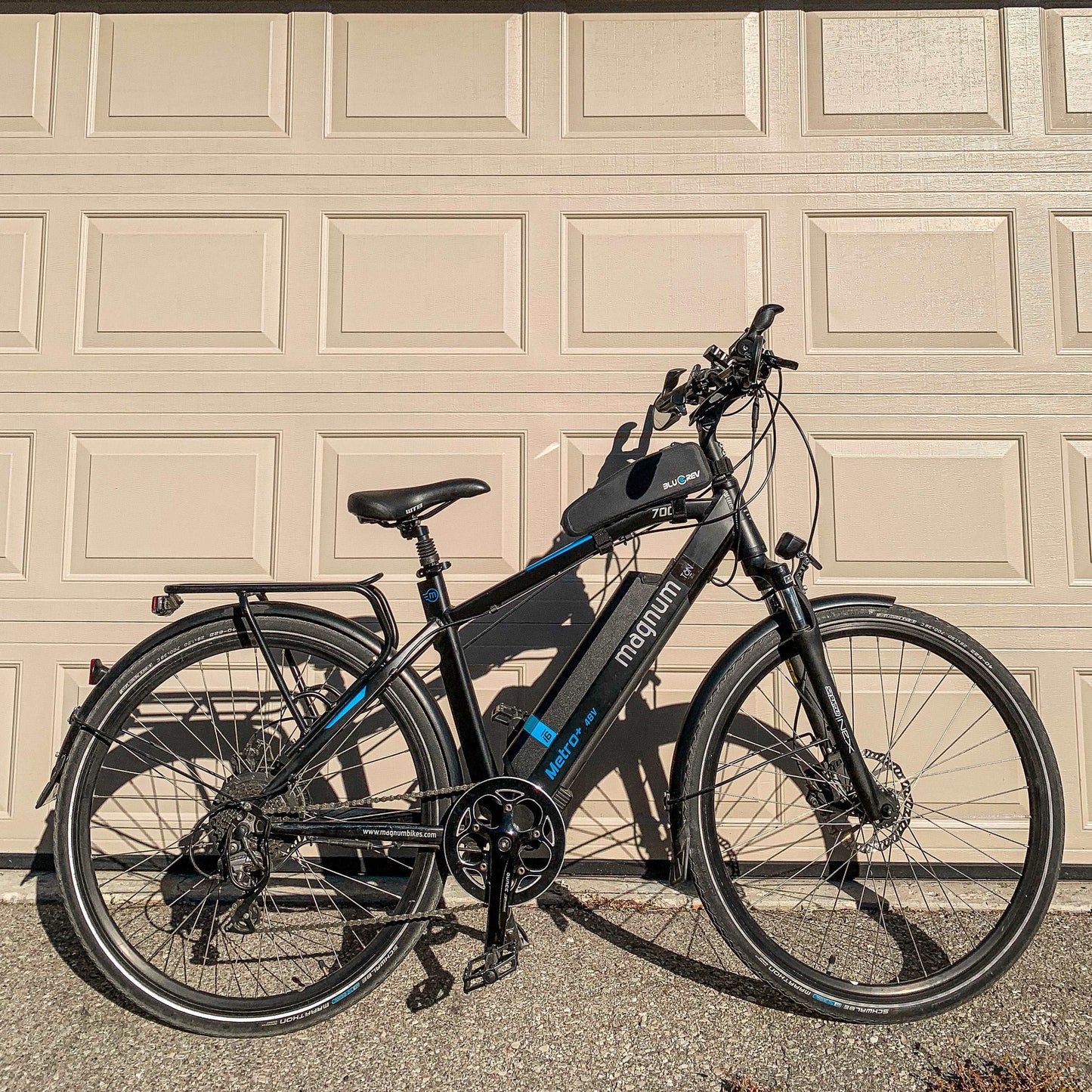

MAGNUM METRO 700C PLUS

ODO: 3400+ Km

• A beautifully designed, purpose built electric bike well suited to urban riding or commuting
• European frame design with 700c wheels.
• Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers both pedal assist and throttle mode
• One-cable design connecting the display to the controller eliminating excess cables running to the controller.
• Built in USB charge point turns your ebike battery into a power supply for all mobile devices

Specifications:

• MAKE: Magnum

• MODEL: Metro+

• BODY POSITION: Upright

• SUGGESTED USE: Urban, Commuting

• ELECTRIC BIKE CLASS: Throttle on Demand (Class 2), Speed Pedelec (Class 3)

• TOTAL WEIGHT: 59.2 lbs (26.85 kg)

• BATTERY WEIGHT: 9.2 lbs (4.17 kg)

• MOTOR WEIGHT: 10.1 lbs (4.58 kg)

• FRAME MATERIAL: 6061 Aluminum Alloy

• FRAME SIZES: 19 in (48.26 cm)

• GEOMETRY MEASUREMENTS: 19" Seat Tube, 22.75" Reach, 29" Stand Over Height, 24.25" Width, 73" Length

• FRAME TYPES: High-Step

• FRAME COLORS: Satin Black with Blue Accents, Satin White with Blue Accents

• FRAME FORK DETAILS: SR Suntour NEX Spring Suspension, 63 mm Travel, Preload Adjust (Under the Plastic Caps), 100 mm Hub Length, 9 mm Skewer with Quick Release

• FRAME REAR DETAILS: 142 mm Hub Length, 11 mm Axle with Nuts

• ATTACHMENT POINTS: Rear Rack Bosses, Fender Bosses

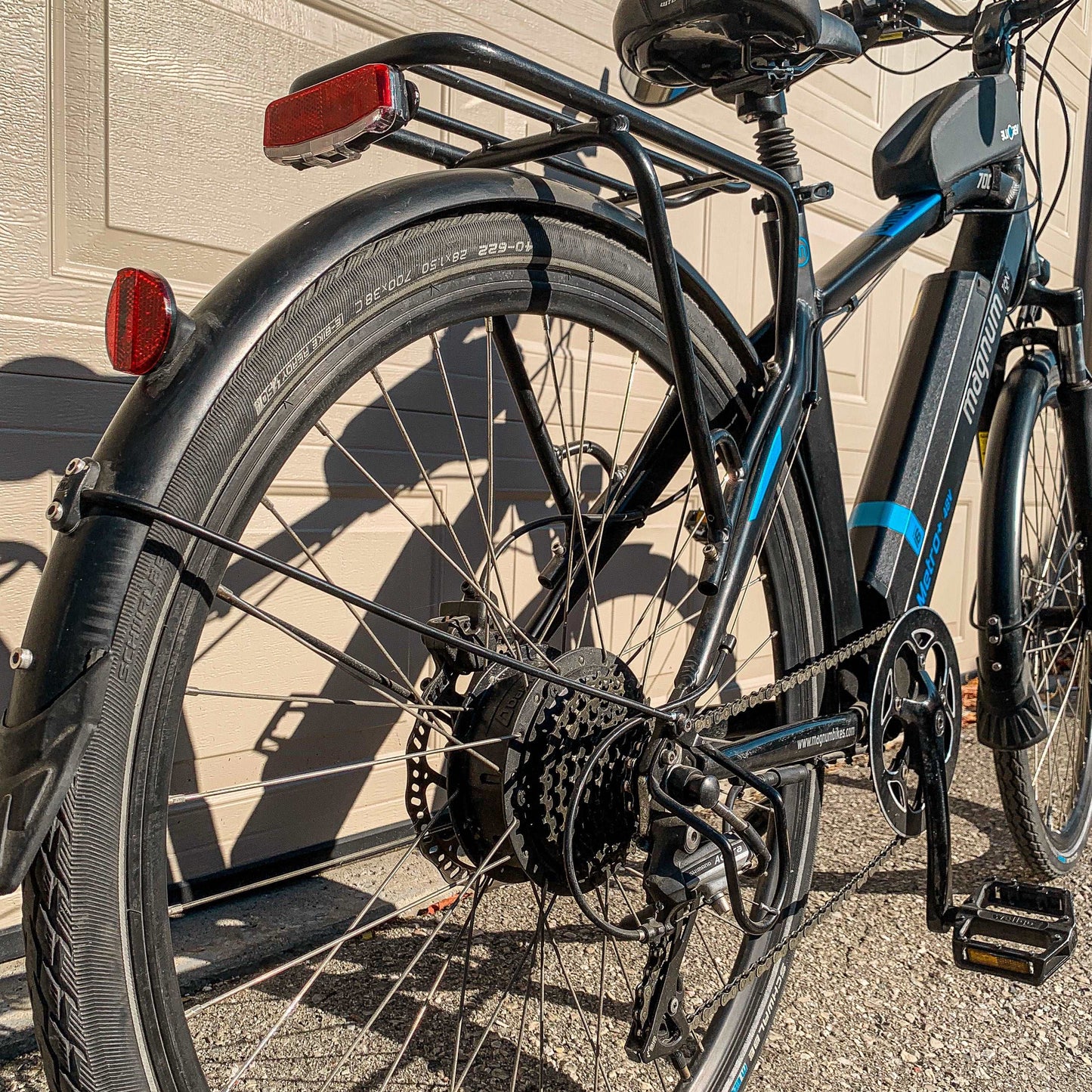

• GEARING DETAILS: 8 Speed 1x8 Shimano Acera Derailleur, 11-32T Cassette

• SHIFTER DETAILS: Shimano Triggers on Right

• CRANKS: Prowheel Ounce, Forged Alloy, 170 mm Length, Square Taper Bottom Bracket, 48 Tooth Chainring with Alloy Guard

• PEDALS: Wellgo Aluminum Alloy Platform, Black

• HEADSET: Neco Tapered 1-1/8" to 1-1/2" Threadless Internal Cups

• STEM: Promax Tool-Free Adjustable Angle, 100 mm Length, 25.4 Clamp Diameter

• HANDLEBAR: Low-Rise, Aluminum Alloy, 610 mm Length

• BRAKE DETAILS: Tektro Auriga Hydraulic Disc with 180 mm Rotors, Dual-Piston Calipers, Three-Finger Levers with Motor Inhibitors

• GRIPS: Imitation Leather, Ergonomic, Stitched

• SADDLE: Selle Royal Royalgel, Imitation Leather

• SEAT POST: Promax Suspension (40 mm Travel), Aluminum Alloy

• SEAT POST LENGTH: 340 mm

• SEAT POST DIAMETER: 27.2 mm

• RIMS: Aluminum Alloy, Double Walled, 36 Hole

• SPOKES: Stainless Steel, 13 Gauge, Silver with Adjustable Nipples

• TIRE BRAND: Schwalbe Marathon, 700 x 38c, (28" x 1.5"), (40-622)

• WHEEL SIZES: 28 in (71.12cm)

• TIRE DETAILS: 50 to 85 PSI, 3.5 to 6.0 BAR, E-Bike Ready 50, Reflective Sidewall Stripes, Performance Line GreenGuard

• TUBE DETAILS: Schrader Valve

• ACCESSORIES: Flick Bell, Custom Rear Rack with Pannier Blockers and Triple Bungee (25 kg 55 lb Max Weight), Black Aluminum Alloy Fenders with Mud Flaps, Integrated Spanninga Kendo+ Headlight, Independent Spanninga Solo Back Light (2 AAA Batteries), Sticker Slap Guard, Center-Mount Single Side Adjustable Length Kickstand, Steel Derailleur Guard

• OTHER: Locking Removable Downtube Mounted Battery Pack, 9 Mosfet 18 Amp Current Controller, 1.5 lb 2 Amp Charger, Sine Wave Controller

•




   ELECTRONIC DETAILS

• MOTOR BRAND: Das-Kit

• MOTOR TYPE: Rear-Mounted Geared Hub

• MOTOR NOMINAL OUTPUT: 500 watts

• MOTOR PEAK OUTPUT: 700 watts

• MOTOR TORQUE: 90 Newton meters

• BATTERY BRAND: Samsung, DLG, Panasonic

• BATTERY VOLTAGE: 48 volts

• BATTERY AMP HOURS: 13 ah

• BATTERY WATT HOURS: 624 wh

• BATTERY CHEMISTRY: Lithium Nickel Cobalt Manganese (Li-NCM)

• CHARGE TIME: 6.5 hours

• ESTIMATED MIN RANGE: 30 miles (48 km)

• ESTIMATED MAX RANGE: 60 miles (97 km)

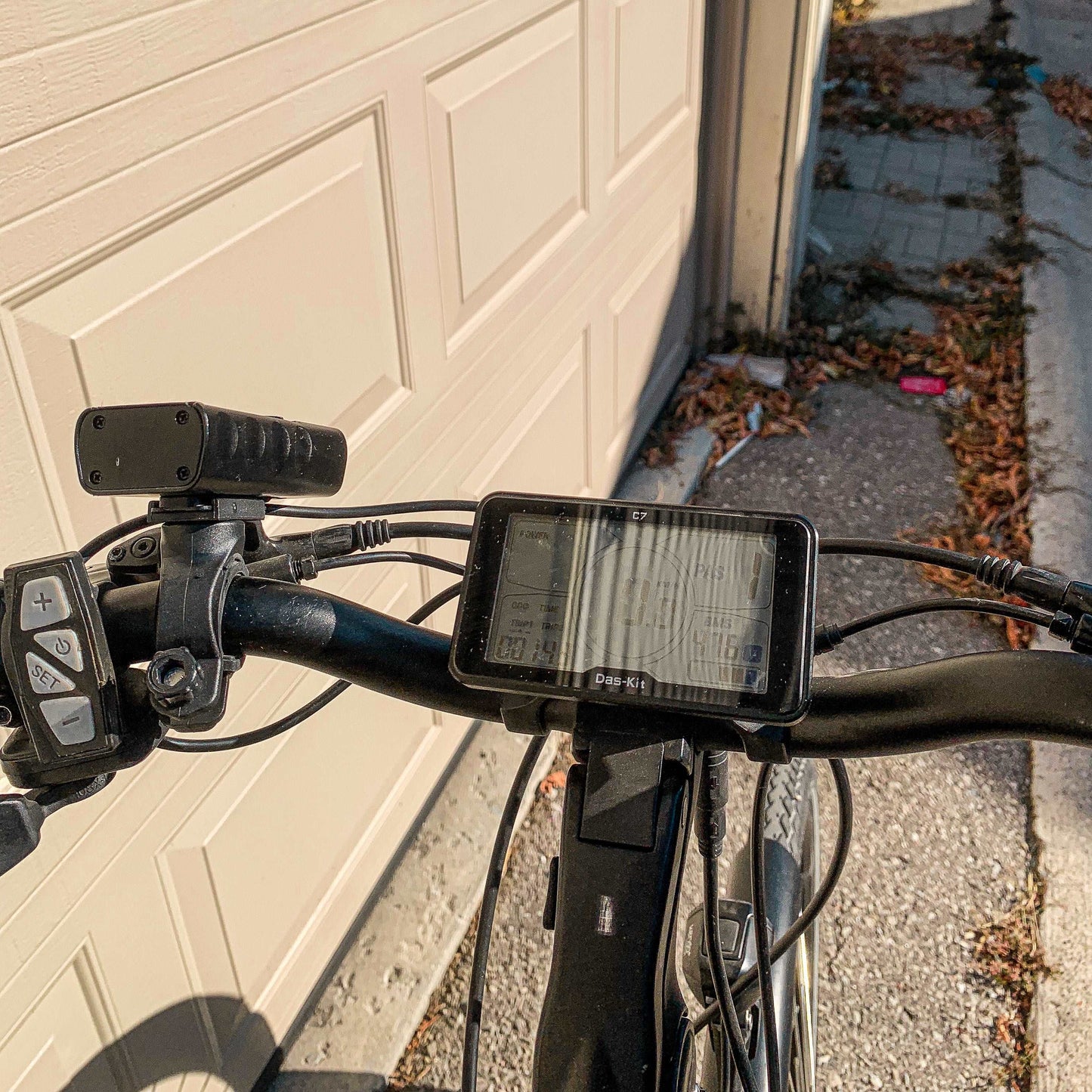

• DISPLAY TYPE: Das-Kit C7, Fixed, Backlit, Monochrome LCD

• READOUTS: Power Output Indicator (6 Ticks), Assist Level (0-6), Speed, Odometer, Timer, Trip 1, Trip 2, BMS Voltage, Battery Level (6 Bars)

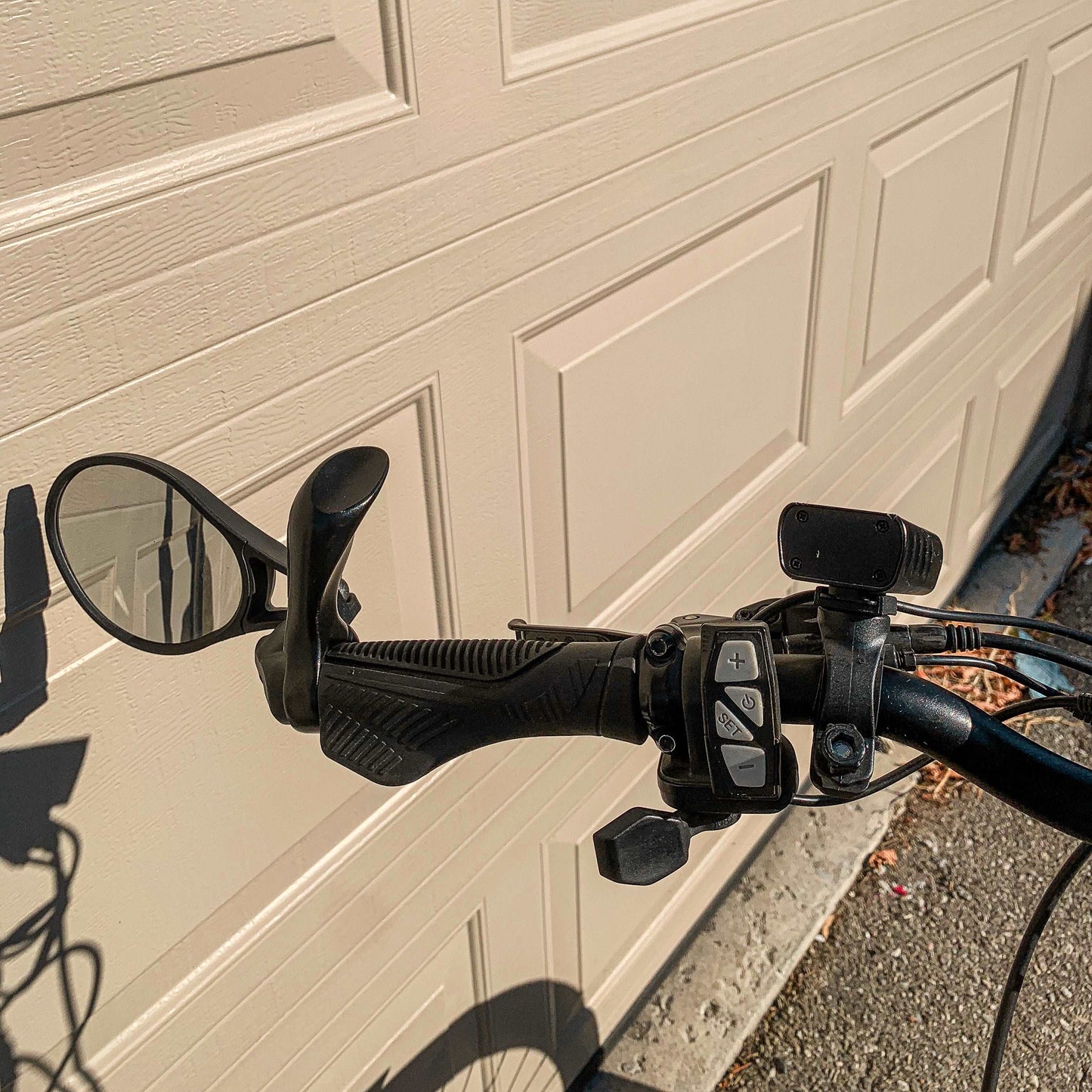

• DISPLAY ACCESSORIES: Independent Button Pad (Power, Set, +, -), (Press Power Button for Display Backligt, Hold Minus Button for Walk Mode)

• DRIVE MODE: Cadence Sensing Pedal Assist, Trigger Throttle

• TOP SPEED: 28 mph (45 kph)(20 MPH Throttle, Adjustable)
