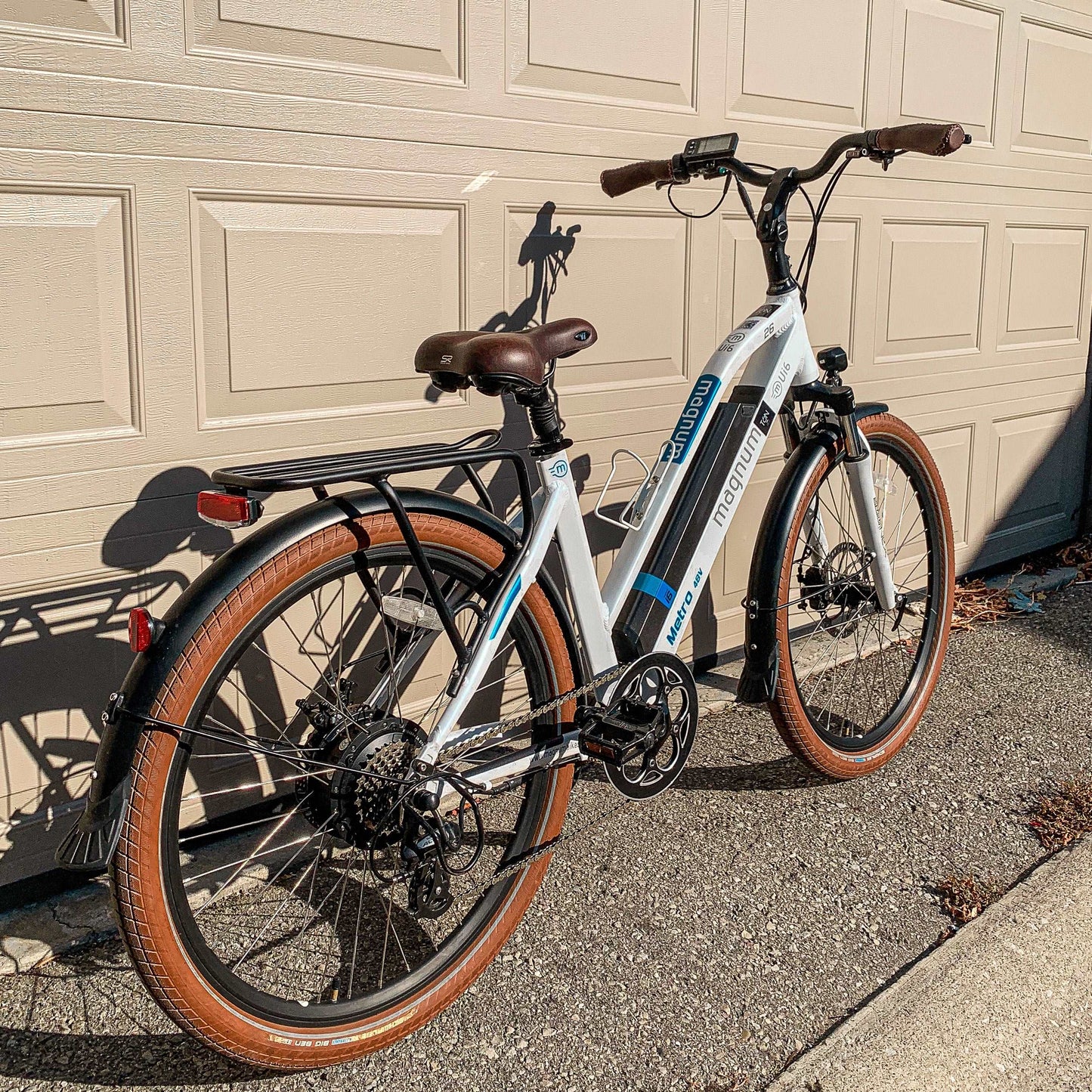

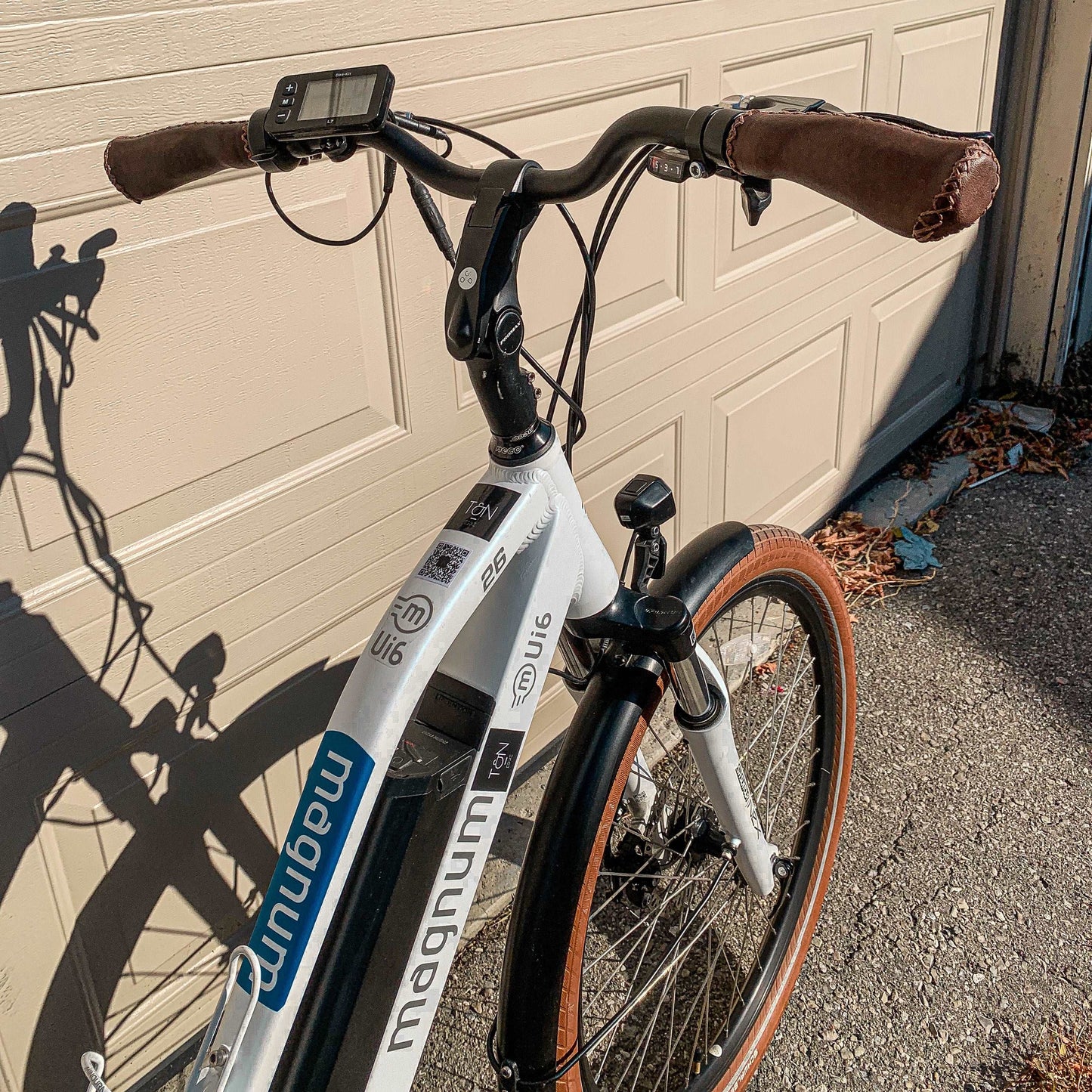

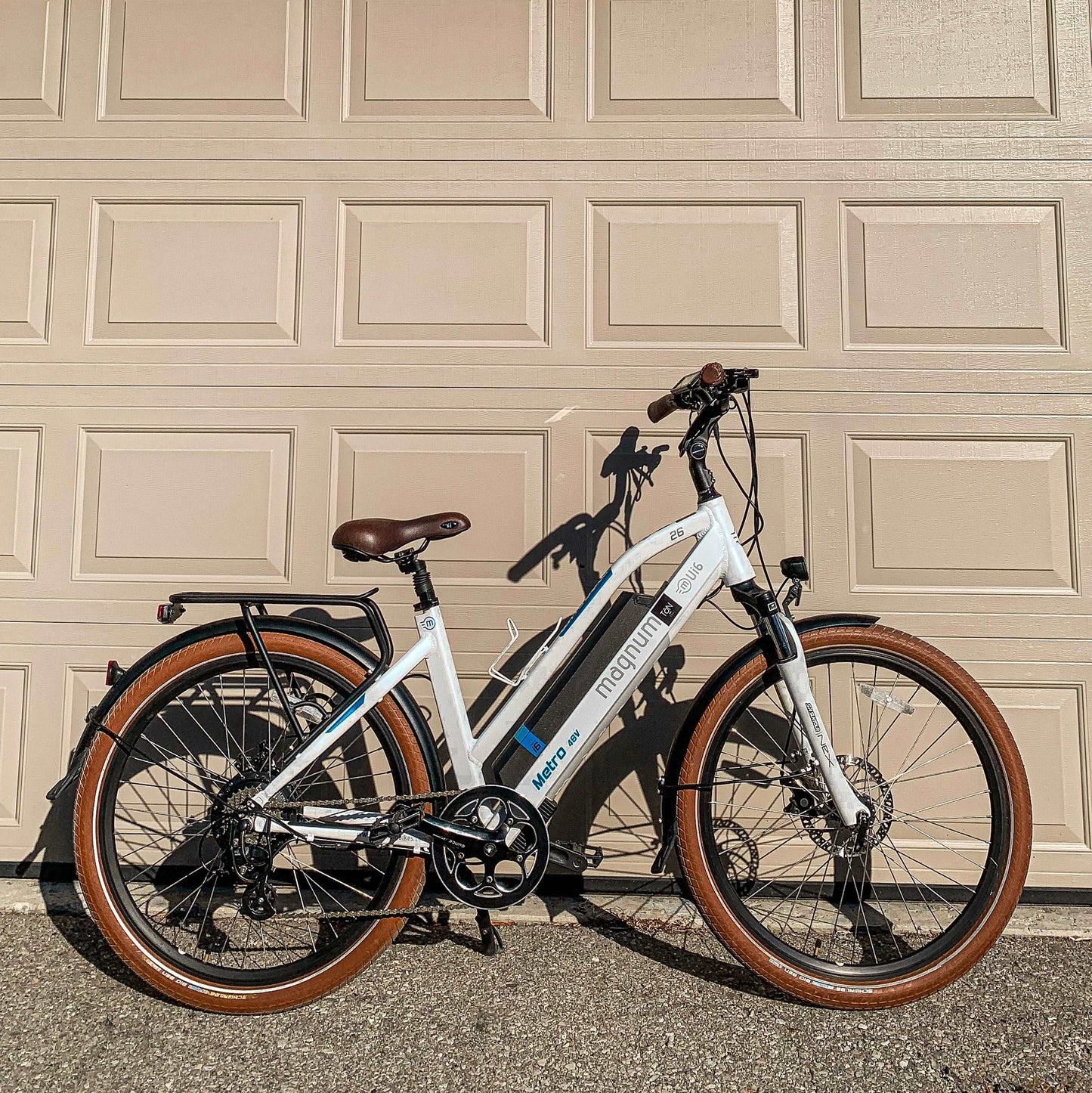

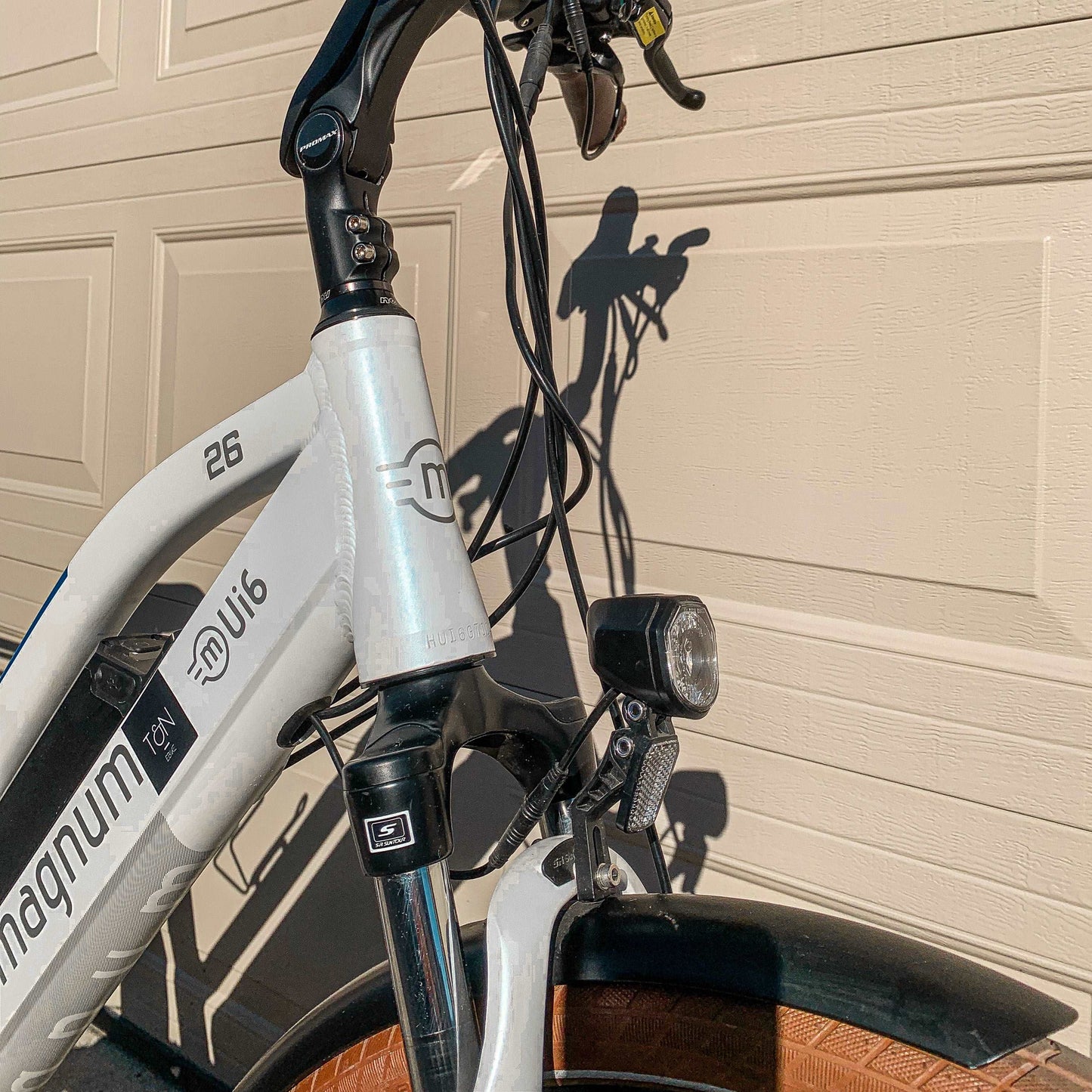

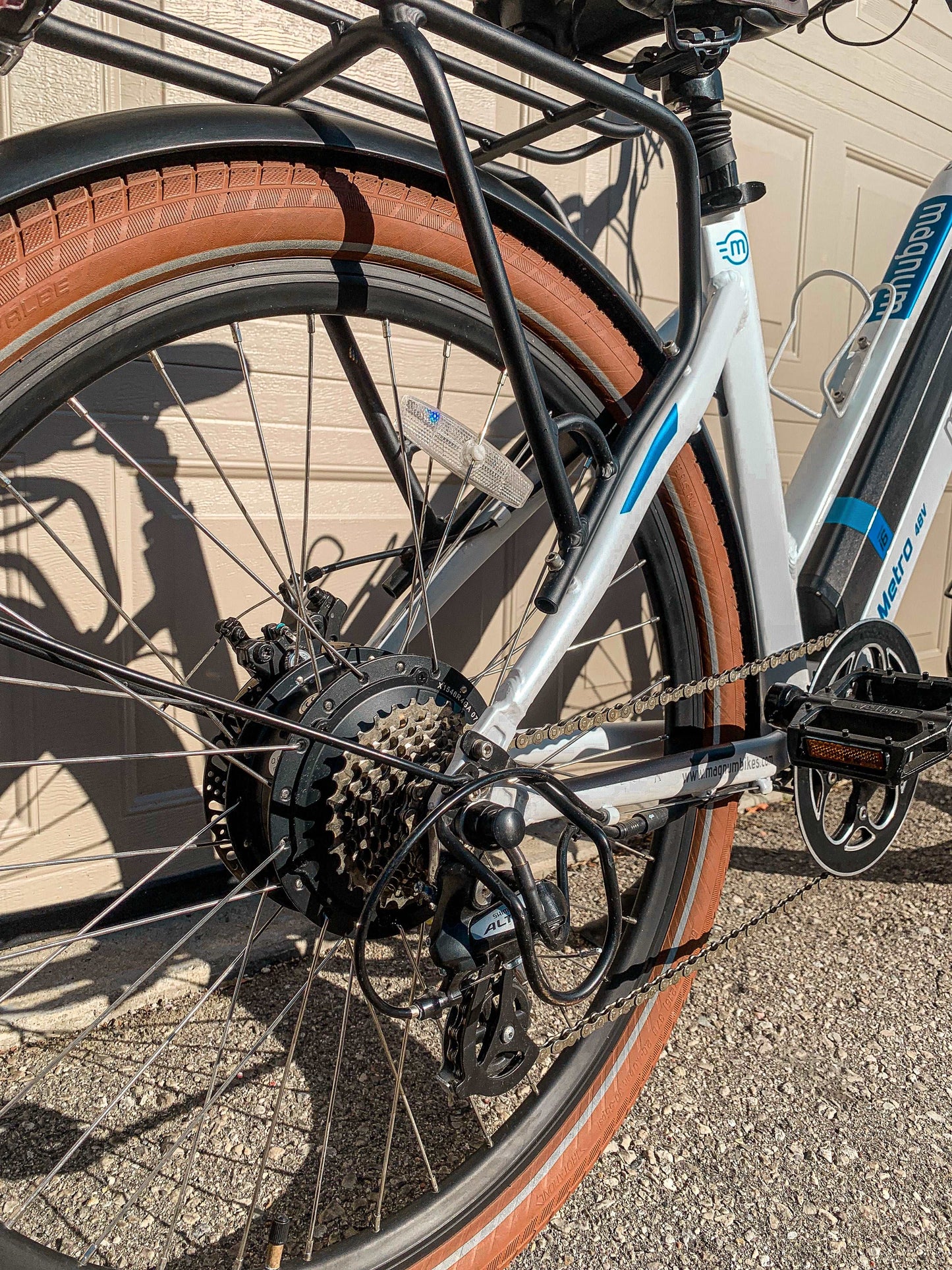

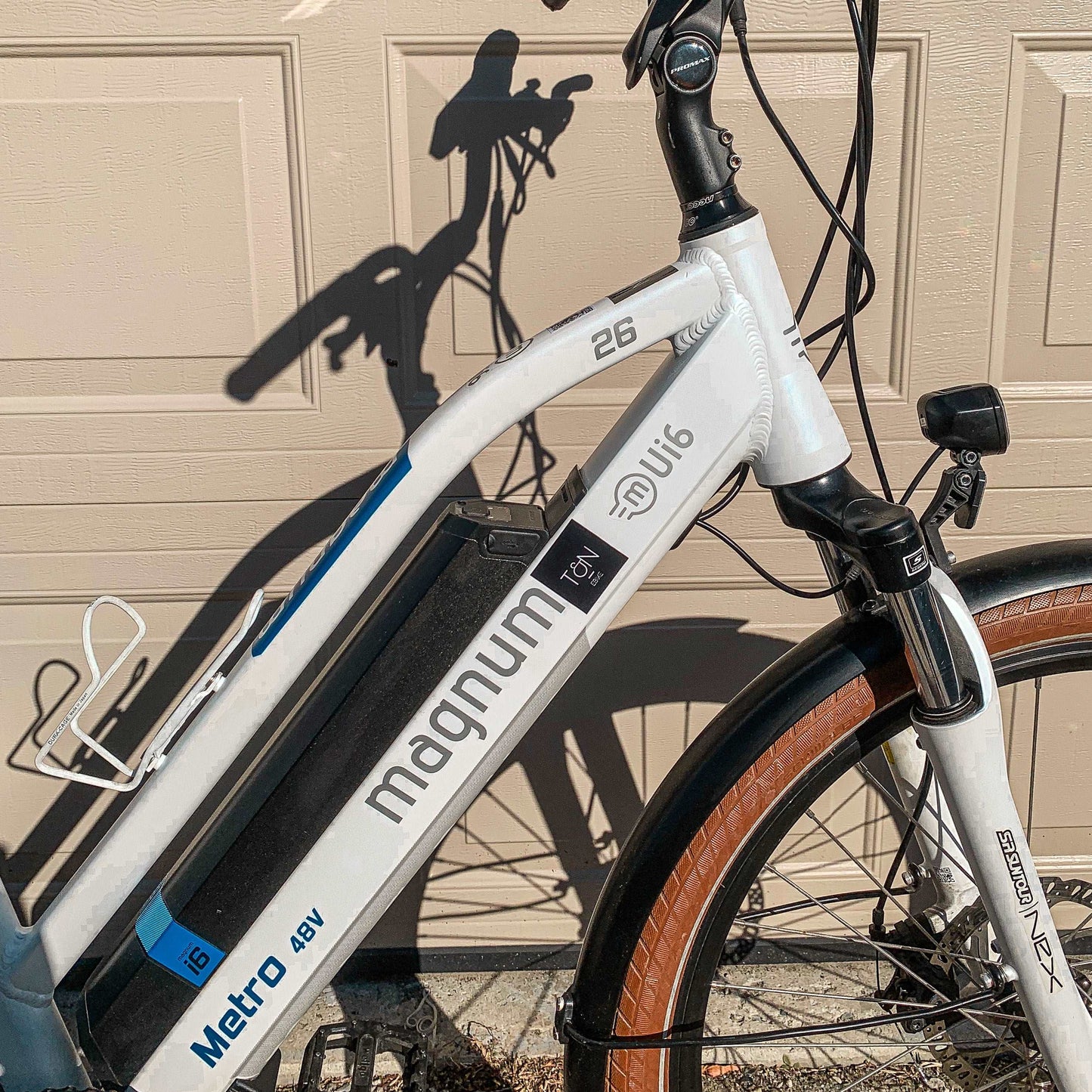

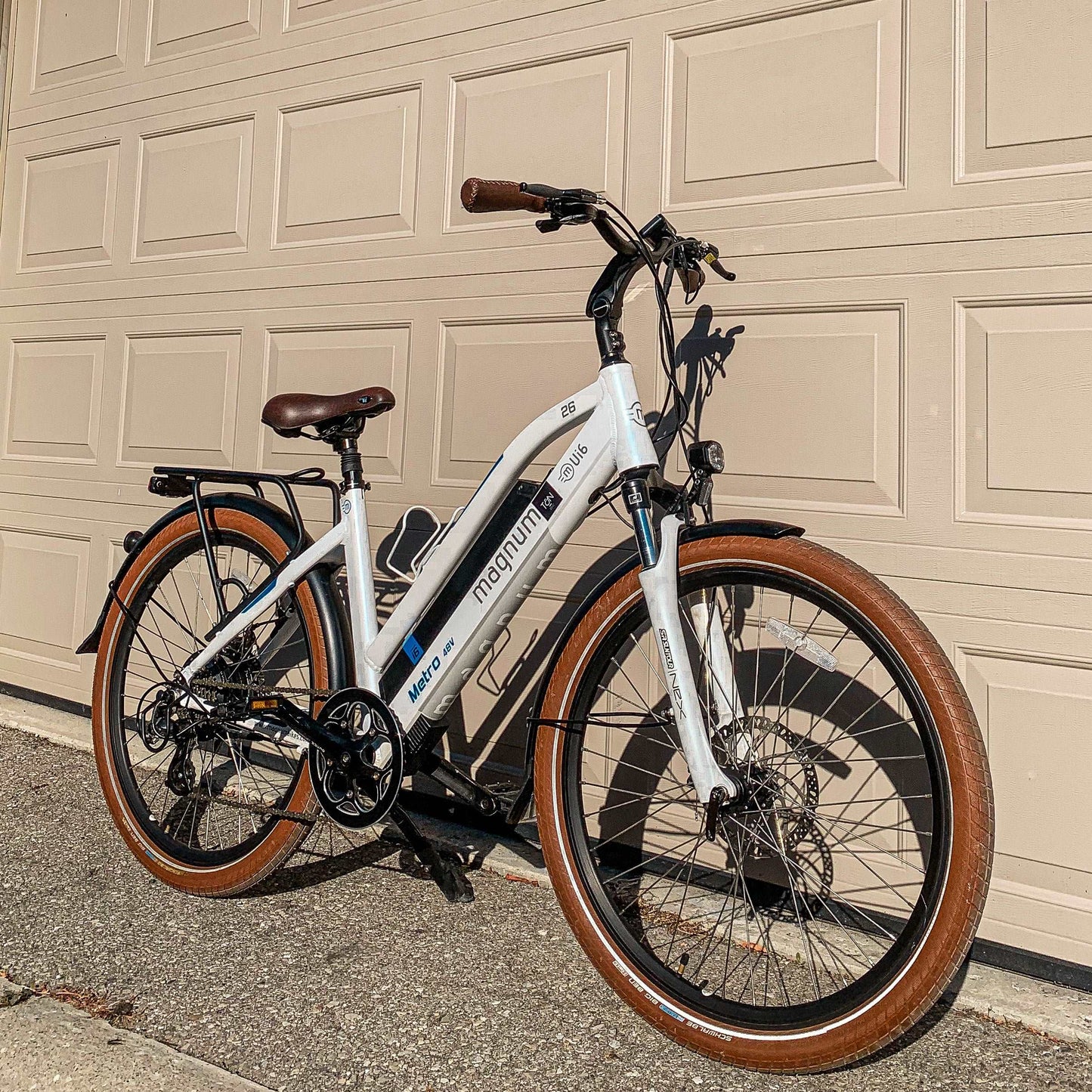

MAGNUM METRO S (Almost new)

ODO: 300+ Km

• A beautifully designed, purpose built electric bike well suited to urban riding or commuting

• Step-thru frame for easy mounting and dismounting

• Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers both pedal assist and throttle mode

• One-cable design connecting the display to the controller eliminating excess cables running to the controller.

• Built in USB charge point turns your ebike battery into a power supply for all mobile devices

Specifications:

• Model:

• Magnum Metro S

• Body Position:

• Upright

• Electric Bike Class:

• Throttle On-demand (Class 2), Speed Pedelec (Class 3)

• *Throttle can be removed for Class 1

• Warranty:

• 1 Year Comprehensive

• Max Load:

• 265lbs

•




  ELECTRONIC DETAILS

• Motor Type:

• Bafang Rear Geared Hub Motor

• Motor Output:

• 48v 500w / 750w Peak

• Battery Voltage / Amp Hours / Watt Hours:

• 48v / 13ah / 624wh / With Usb Port

• Battery Chemistry:

• Lithium Nickel Cobalt Manganese (Li-ncm)

• Estimated Charge Time:

• 6.5 Hrs

• Estimated Min And Max Range:

• 48 to 96 km (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)

• Display Type:

• Magnum Velofox, Fixed, Backlit, Monochrome Lcd

• Display Records:

• Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

• Drive Modes:

• Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

• Top Speed:

• 40 km/hr With Pedal Assist, 32km/hr Throttle Only

• Lights:

• Integrated front and rear light controlled from the display

•




  MEASUREMENTS

• Seat Tube

• 17.25” (44 cm)

• Reach

• 16.5” (42 cm)

• Stand Over Height

• 26.75” (68 cm)

• Virtual Top Tube Length

• 23.25” (59 cm)

• Min Saddle Height

• 23.25” (59 cm)

• Max Saddle Height

• 29” (74 cm)

• Width

• 27.25” (69 cm)

• Wheelbase

• 44” (112 cm)

• Length

• 71” (180 cm)

• Total Weight

• 62 lbs (28 kg)

• Battery Weight

• 9 lbs (4.1 kg)

• Rider minimum height

• 5’0”

•




  MECHANCIAL DETAILS

• Frame material

• Aluminum Alloy

• Frame size

• 17.25” (44 cm)

• Frame Type

• Fork Details

• Suspension Fork with Lockout and Preload Adjust

• Gearing details

• Shimano 7-Speed

• Shifter Details

• Shimano 7-Speed

• Crank

• Aluminum Alloy, 52T, 170mm

• Pedals

• Wellgo

• Stem

• Tool-Free Adjustable

• Brakes

• Mechanical Disc Brakes

• Grips

• Ergonomic Faux Leather

• Saddle

• Selle Royal Polygel

• Tire Brand

• Brown w/Reflective Strip 26 x 2.4

• Wheel size

• 26”

• Fenders

• Front and Rear Included

• Chain

• KMC

• *Some assembly required
