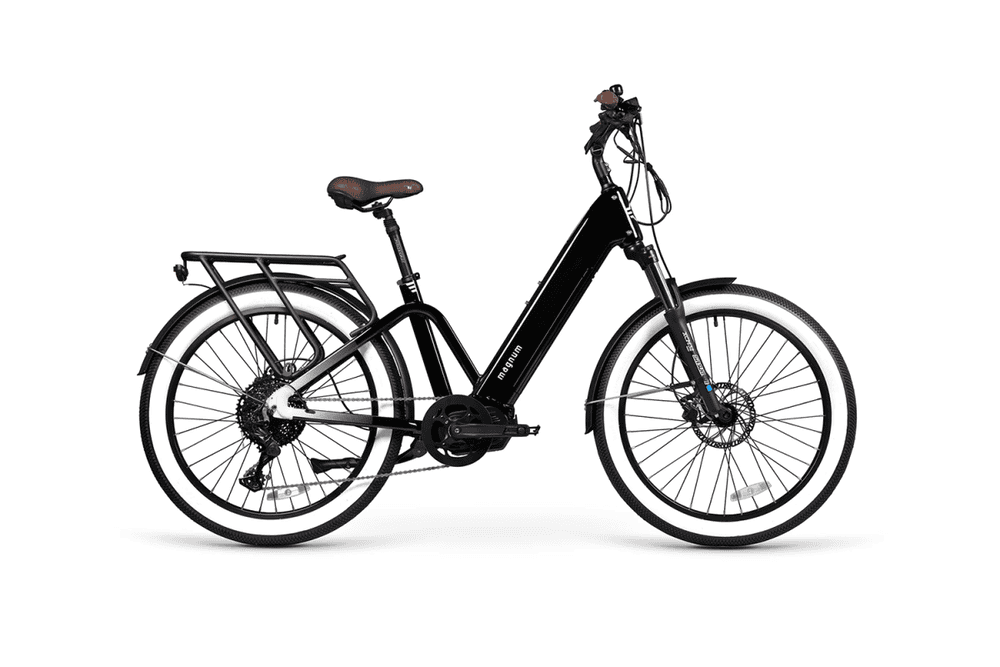

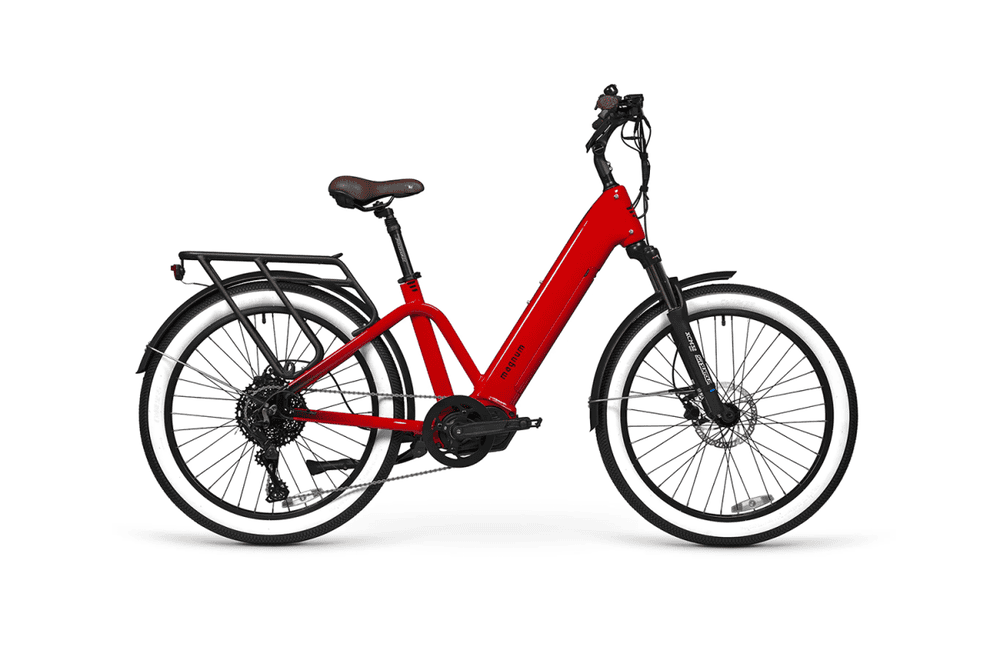

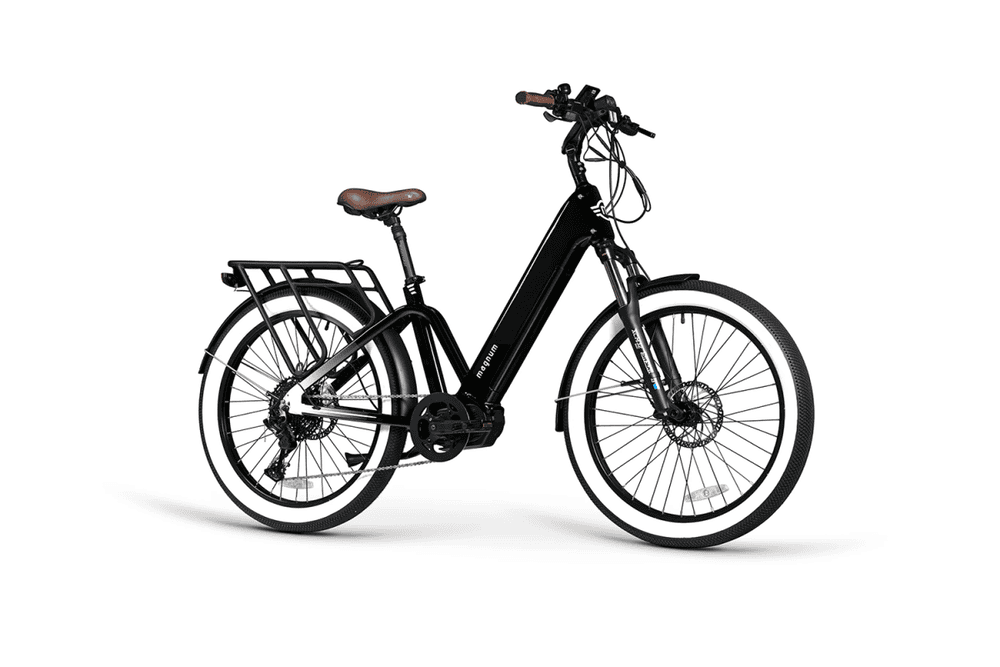

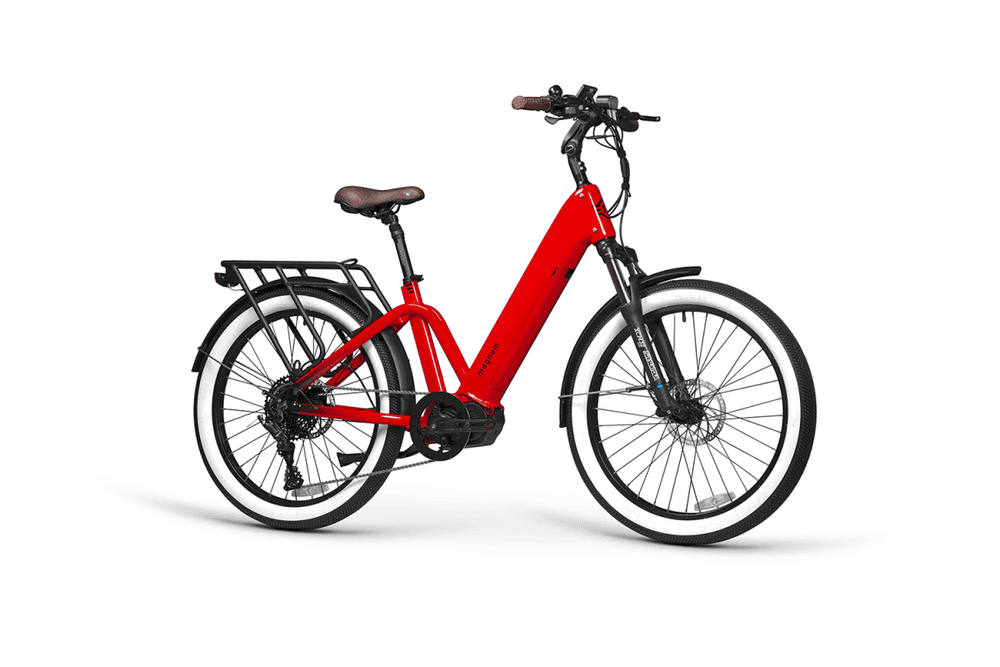

Magnum Pilot – Mid Drive
Magnum Pilot – Mid Drive
Regular price
$2,999.00 CAD
Regular price
$3,999.00 CAD
Sale price
$2,999.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Experience a natural and well-balanced ride while traveling on the boardwalk or taking evening rides around the neighborhood with the family, thanks to our new Ananda mid-drive system. The integrated, detachable battery is concealed within the frame, and a thumb throttle allows you to pedal on your own terms. Choose from a range of attention-grabbing colors, and enjoy a comfortable and stylish journey with the Pilot.
Motor Brand: Ananda
Motor Type: Mid-Drive Motor
Motor Nominal Output: 500 Watts
Motor Peak Output: 750 Watts
Battery Brand: Samsung Cells
Battery Voltage: 48 Volts
Battery: 15Ah , 720Wh
Battery Chemistry: Li-NMC
Battery Charge Time: 7.5 Hours
Minimum Range: 40 km
Maximum Range: 80 km
Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Display Accessories: Drive Mode, Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
Top Speed: Up to 45 km/hr with Pedal Assist, 32 km/hr with Throttle
Lights: Integrated front and rear lights.
MECHANICAL DETAILS
Frame Material: Aluminum Alloy
Frame Size: 17.5″
Fork Details: Suntour XCM32 Boost
Gearing Details: Microshift Advent 10-Speed
Shifter Details: Microshift Advent 10-Speed
Crank: Aluminum Alloy 170mm
Pedals: Wellgo
Stem: Tool-free Adjustable
Brakes: Tektro Hydraulic
Grips: Brown Faux Leather
Saddle: Selle Royal Freeway
Wheel size: 26 x 3”
Fenders: Front and Rear Included
Chain: KMC 10-Speed
MEASUREMENTS
Seat Tube: 17.5″ (44 cm)
Reach: 16.75″ (42.5 cm)
Stand Over Height: 19.25″ (49 cm)
Virtual Top Tube Length: 23.25″ (59 cm)
Min Saddle Height: 23″ (58 cm)
Max Saddle Height: 29.25″ (74 cm)
Width: 27″ (69 cm)
Wheelbase: 48″ (122 cm)
Length: 76″ (193 cm)
Total Weight: 74.5 lbs (33.75 kg)
